Pudong Football Stadium [White Porcelain Bowl] Will Be Delivered in Phases

  The construction of the Pudong Football Stadium is nearing completion. This huge [white porcelain bowl] will welcome the 2020 League of Legends Global Finals (S10) champion and runner-up finals to be held here at the end of October. This also marks that Shanghai will add another world-class professional football stadium.

  As a "super football stadium", Pudong Football Stadium has more "connotations" in addition to traditional large-scale football matches-the stadium is equipped with professional e-sports space and related supporting facilities, making it another iconic stadium in Shanghai. Competition venues. The external debut of Pudong Football Stadium is a world-class e-sports feast-the 2020 League of Legends World Championship (S10) championship and runner-up finals will be held on October 31. At that time, this exquisite "white porcelain bowl" will make a stunning appearance.

  The Pudong Football Stadium project was undertaken by Jiushi Group. The construction site is located in the wedge-shaped green area of Zhangjiabang. The total construction area of the stadium is 139,304 square meters, and the fixed number of seats is 33,765. There is a three-layer competition stadium and two training stadiums on the ground.

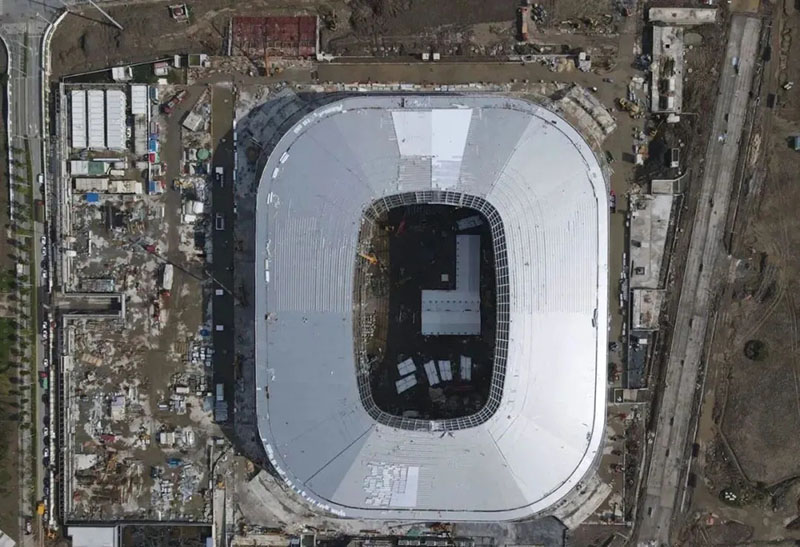

  The football field is arranged in a north-south direction (15°west from north). Two outdoor training fields are set on the west side of the main court to form a square, flat and symmetrical layout on the central axis; a green entrance square is set on the north side near Jinxiu East Road as a match time A buffer space for the arrival of a large number of people; at the same time, a car loop is set up along the outer circle of the football field, and the traffic flow line design and the entrance and exit layout are rationally implemented to achieve the separation of people and vehicles. In order to meet the technical standards and requirements of the AFC and FIFA for professional football stadiums, the stadiums rely on sinking the playing field and raising the underground space to improve evacuation efficiency.

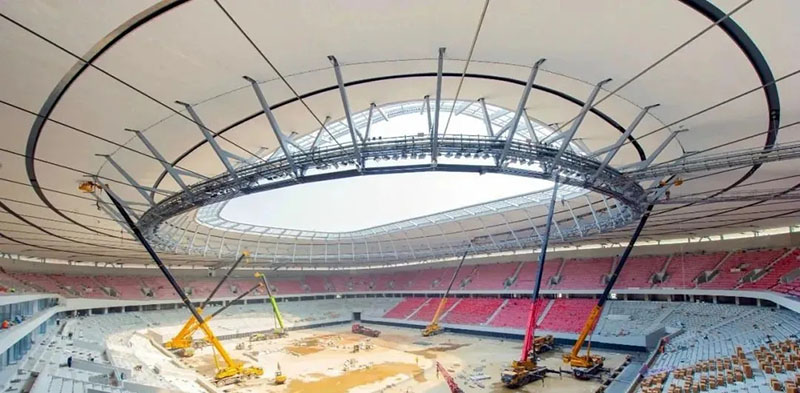

  The roof of the stadium adopts a prestressed spoke-like tension system, just like a bicycle hub covering the stadium horizontally. The biggest feature is the combination of custom space steel structures and cable net, replacing the heavy and cumbersome steel truss system in the past. The biggest advantage is light weight. The steel consumption of the entire roof is about 4600 tons, which is about 50% less steel consumption than the traditional construction methods in the past.

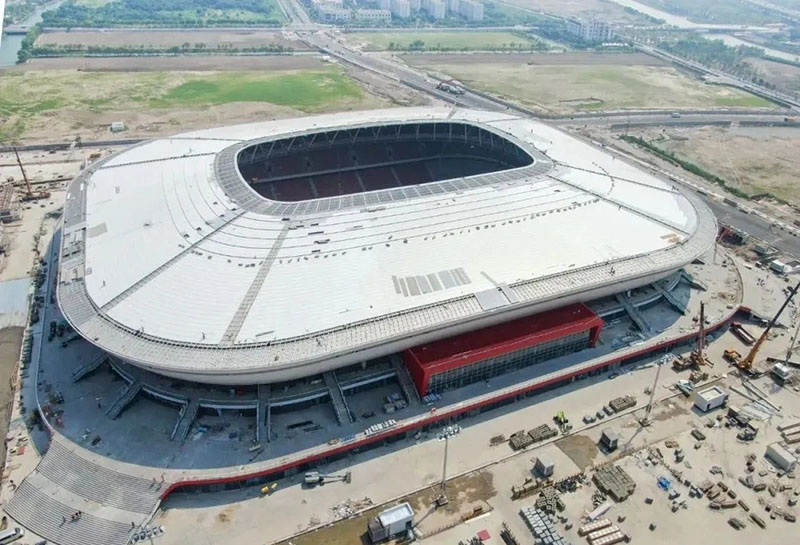

  The innermost circle of the roof is composed of transparent sunlight panels, allowing sunlight to pass through and shine on the turf. The outer circle of roofs is composed of white aluminum composite panels and membrane structures. The entire roof stretches and closes in the air at a certain slope. And drainage pipes are being installed around the roof to ensure the discharge of rainwater in rainy days. Under the sun board, there is a circle of horse tracks for arranging lights, camera positions, etc. The height is also higher than the last row of stands on the upper floor, so that the sight of the audience will not be blocked.

  In addition, the stadium adopts a rectangular rounded corner double-layer grandstand layout, and the platform layer is completely open to the stadium. The first row of spectator seats is only 10 meters away from the stadium, and the vision is open and unobstructed, which can greatly enhance the atmosphere and experience of watching the game. In the future, Pudong Football Stadium will use a football platform to promote the overall construction of the region and become a carrier of fitness, leisure and entertainment for the masses of Shanghai. It will create a public sports activity center to meet the diverse fitness needs of citizens.

  It is worth mentioning that the turf system of the Pudong Football Stadium will meet the international high-standard field conditions. During the construction process, full consideration was given to the humid, hot and rainy climate characteristics of Shanghai and the intensive race schedule. All venues were planted with natural grass to assist the lawn root reinforcement (anchor grass) system, and the venue was also equipped with root ventilation and drainage systems to improve soil The micro-environment helps the lawn grow, which will meet the all-weather high-density competition schedule and high-level competition craft requirements.
